The PULS CP Series represents the pinnacle of 1-phase DIN rail power supply engineering, delivering 120W, 240W, and 480W of reliable DC power from a single-phase AC input. Renowned for being the world's first 240W power supply to exceed 95% efficiency, the CP Series dramatically reduces heat dissipation, enabling passive cooling and eliminating the need for fans even in thermally challenging environments.

Available in standard and slim (CPS) housing variants, the CP Series is designed to fit into the most space-constrained control cabinets without compromise. Extended operating lifetimes of over 166,000 hours at full load, combined with a comprehensive range of variants including conformal-coated (C1), metal-housed (M1), EtherCAT-enabled (ETC), IO-Link (IOL), and enhanced surge protection versions, make the CP Series the ideal choice for demanding industrial installations worldwide.

Main Features:

• Industry-leading efficiency up to 95.6%, minimising heat and energy costs
• Extraordinarily long service life (>166,000 h at 40°C full load)
• Available in 120W, 240W, and 480W power classes
• Wide-range universal AC input (100–240VAC or 90–264VAC)
• Slim CPS variants with ultra-narrow housing for space-critical panels
• Variants with EtherCAT, IO-Link, conformal coating, and metal housing
• 50% power reserve (boost mode) for peak load handling
• DIN rail and wall mounting compatible
• UL, CE, and ATEX certified"

‍
Output Voltage:

• 12 VDC
• 24 VDC
• 36 VDC
• 48 VDC

Output Current:

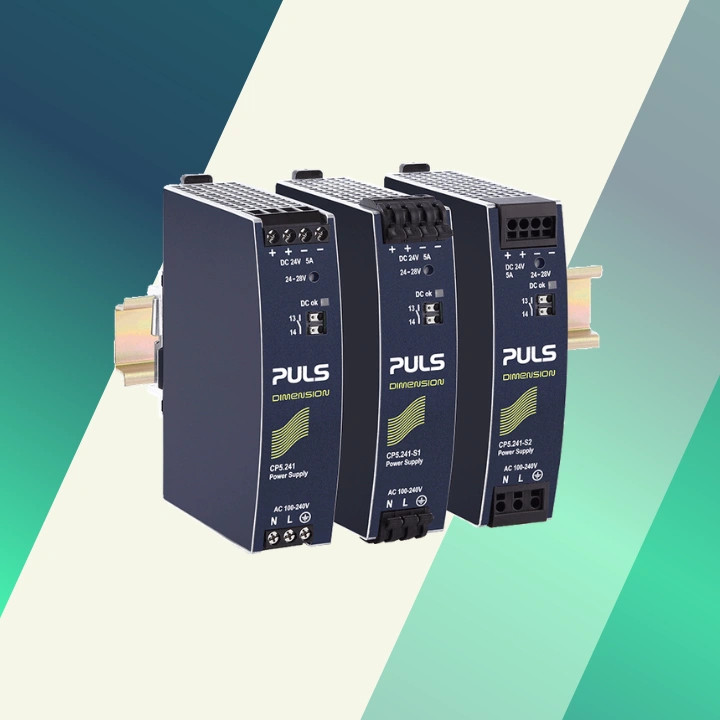

• CP5: 5A (120W)

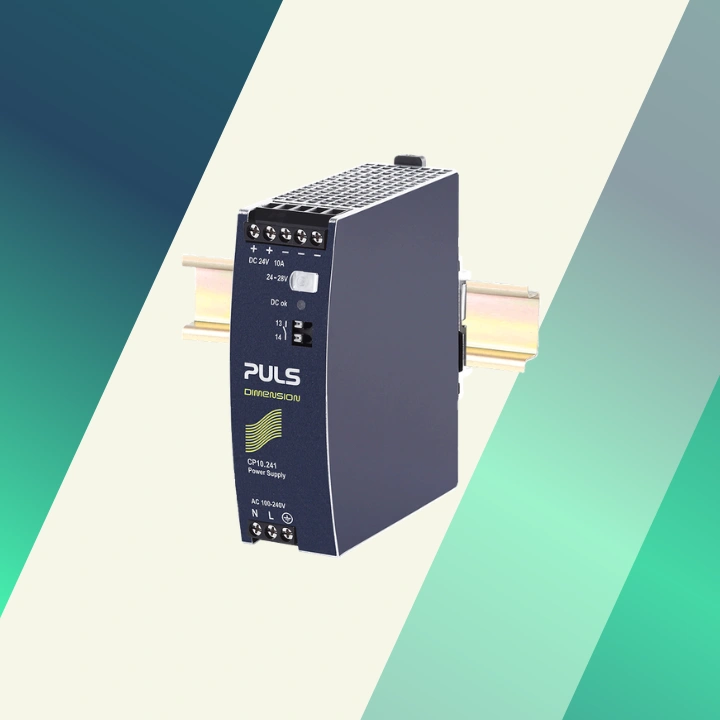

• CP10: 10A (240W)
• CP20: 20A (480W)
• CPS20: 20A (480W) — slim profile"

Input Voltage:

• 90–264 VAC, 47–63 Hz (universal wide range)

Operating Temperature:

• -25°C to +70°C (full load up to 60°C)
