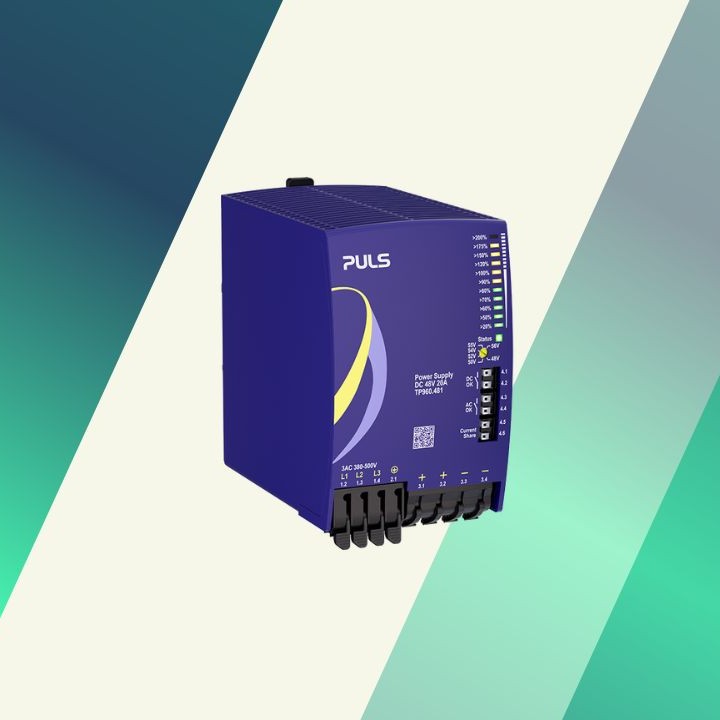

The PULS  Planet Series 3-Phase brings high-power three-phase DIN rail power supply  capability with integrated monitoring to the most demanding industrial power  distribution applications. Delivering 960W from a three-phase AC input in  both 24VDC and 48VDC output variants, the Planet 3-Phase series combines  maximum power density with an integrated front-panel display for immediate  visibility of operational parameters.

The  TP960 series is ideal for large automation systems, production lines, and  industrial infrastructure where a high DC output current — up to 40A at 24V —  is required from a compact, DIN rail-mounted unit. The 4-wire connection  variant (TP960.484) provides added installation flexibility for complex  wiring arrangements.
‍

Main Features:

• 960W output from a three-phase AC input
• Integrated front-panel display for real-time monitoring
• 24VDC and 48VDC output variants
• 4-wire output connection option (484 variant)
• Active power factor correction for power quality compliance
• Short-circuit, overload, and overvoltage protection
• DIN rail mounting
• CE certified

Output Voltage:

• 24 VDC (TP960.241)
• 48 VDC (TP960.481 / TP960.484)

Output Current:

• 24V: 40A
• 48V: 20A

Input Voltage:

• 3 × 320–575 VAC, 47–63 Hz
