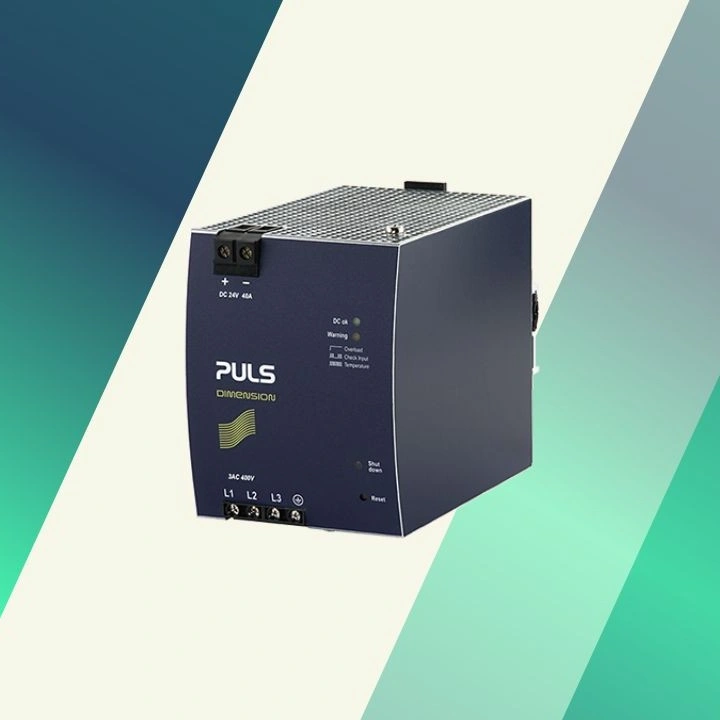

The PULS X Series, the flagship of the DIMENSION product family's 3-phase range, represents the most advanced and highest-performing three-phase DIN rail power supplies available. Rated at 960W / 40A continuous output, the X Series achieves industry-leading efficiency through its advanced converter topology and is available in 24V, 36V, 48V, and 72VDC output voltages — covering a wider voltage range than any comparable product family.

The X Series is designed for applications where performance, reliability, and long service life are non-negotiable: large automation cells, robotics, precision drives, and critical industrial infrastructure. Dual-output variants enable versatile power distribution architectures, and all units feature passive cooling, eliminating fan maintenance concerns even at maximum load in warm environments.

Main Features:

• 960W / 40A three-phase DIN rail power supply — the PULS performance flagship
• Output voltages of 24V, 36V, 48V, and 72VDC — widest range in the portfolio
• Industry-leading efficiency for passive, fanless operation at full load
• Dual-output variants for versatile power distribution
• Advanced DIMENSION series converter topology for maximum reliability
• Long service life for reduced maintenance and total cost of ownership
• Short-circuit, overload, and overvoltage protection
• CE and UL certified

Output Voltage:

• 24 VDC
• 36 VDC
• 48 VDC
• 72 VDC

Output Current / Power:

• All variants: 40A / 960W at 24V (proportional at higher voltages)

Input Voltage:

• 3 × 320–575 VAC, 47–63 Hz

Operating Temperature:

• -25°C to +70°C

‍
