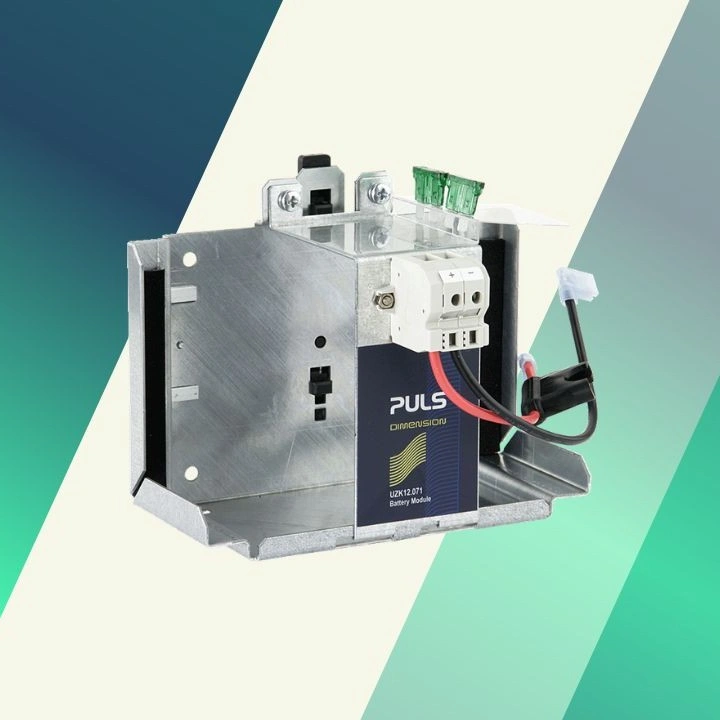

The PULS UZO Battery Module Series provides the same DIN rail battery mounting system as the UZK series but without batteries pre-installed. This approach gives system integrators and OEMs the flexibility to source batteries locally or just-in-time, avoiding stock obsolescence for long-lead projects where batteries may degrade before the system is commissioned.

UZO modules are mechanically and electrically identical to UZK modules and accept the same VRLA battery types. They are fully compatible with PULS UB Series DC-UPS controllers and the UZS24.100 sensor board, enabling a complete, flexible battery backup system tailored precisely to project requirements.

Main Features:

• Battery holder without batteries — flexible, just-in-time battery sourcing
• Avoids battery degradation during long storage and project lead times
• 12V and 24V configurations
• Capacity configurations matching 7Ah, 12Ah, and 26Ah battery sizes
• Compatible with all PULS UB Series DC-UPS controllers
• Compatible with UZS24.100 sensor board for temperature monitoring
• DIN rail mounting
• CE certified

Voltage:

• 12 VDC (UZO12 series)
• 24 VDC (UZO24 series)

Battery Capacity (when fitted):

• 7Ah, 12Ah, or 26Ah dependent on variant

Compatible UPS:

• PULS UB10, UB20, UB40 Series DC-UPS controllers

‍
