PRODUCT  OVERVIEW

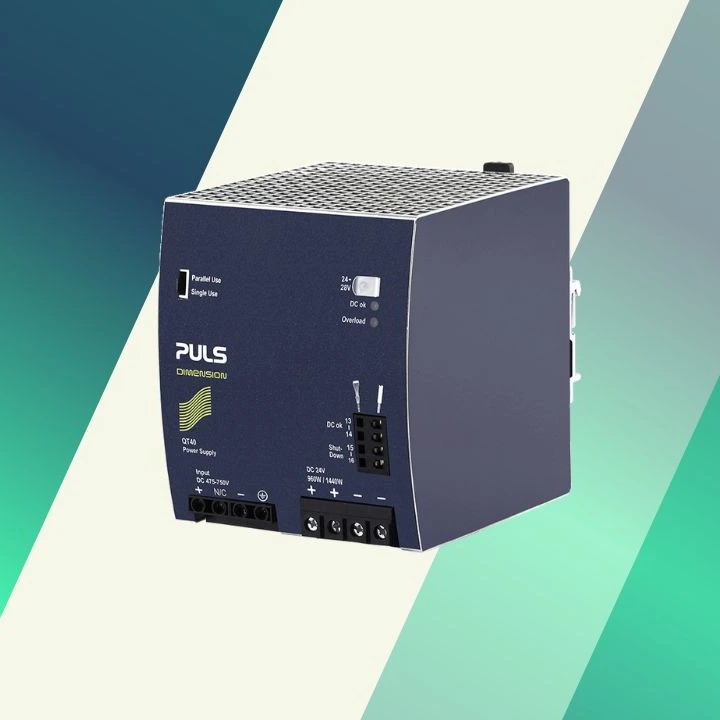

The PULS Q Series 3-Phase, part of the DIMENSION product family, delivers outstanding performance for the most demanding three-phase industrial applications. Available in 480W and 960W power classes with output voltages of 24V, 36V, and 48VDC, these units combine PULS's signature high efficiency with the inherent stability benefits of three-phase AC input to provide clean, reliable DC power for large-scale automation systems.

Advanced variants include IO-Link connectivity (IOL) for Industry 4.0 integration, bus bar connection options (B2) for high-current distribution panels, conformal-coated (C1) versions for harsh environments, and dual-output configurations. The QT40 range at 960W / 40A represents the highest-power 3-phase DIN rail power supply in the PULS portfolio, making it the natural choice for the largest and most power-hungry industrial installations.

Main Features:

• 480W (QT20) and 960W (QT40) power classes
• Output voltages of 24V, 36V, and 48VDC
• Three-phase AC input for balanced, low-ripple power conversion
• Efficiency up to 96% for passive, fan less cooling
• IO-Link variant (IOL) for real-time smart monitoring
• Bus bar connection variant (B2) for high-current panel distribution
• Conformal-coated (C1) and dual-output variants available
• Active power factor correction (PFC)
• CE and UL certified

Output Voltage:

• 24 VDC
• 36 VDC
• 48 VDC

Output Current / Power:

• QT20: 13.3–20A / 480W
• QT40: 26.7–40A / 960W

Input Voltage:

• 3 × 320–575 VAC, 47–63 Hz

Operating Temperature:
• -25°C  to +70°C
