PRODUCT OVERVIEW

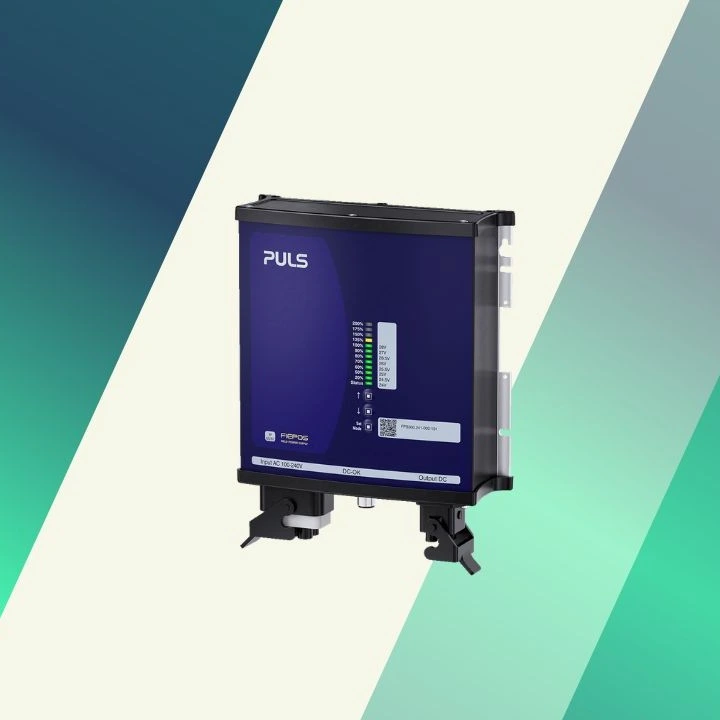

The PULS FIEPOS Field Power Supply range for single-phase applications brings DIN-rail-quality power directly to the field, eliminating the need for a separate control cabinet at the point of use. Rated at 300W (FPS series) and 500W (FPH series), these robust units are housed in IP54, IP65, or IP67-rated enclosures, making them suitable for installation in wet, dusty, and harsh outdoor environments.

By  locating the power supply close to the load, FIEPOS field power supplies  significantly reduce wiring costs and voltage drop across long cable runs.  They accept a wide-range single-phase AC input and deliver a stable 24VDC  output through M12 circular connectors or fixed cable entries — providing  plug-and-play connectivity for field devices, sensors, and actuators in  decentralised automation architectures.

Main Features:
• IP54, IP65, and IP67 ingress protection for outdoor and field installation
• 300W (FPS series) and 500W (FPH series) power ratings
• Single-phase AC input (100–240VAC wide range)
• Stable 24VDC output with short-circuit and overload protection
• M12 circular connectors for tool-free, watertight field connections
• Dramatically reduces cabinet space and long-distance DC wiring costs
• Suitable for wash-down, outdoor, and exposed mounting locations
• Wide operating temperature range for demanding environments
• CE certified

Output Voltage:
• 24 VDC
‍
Output Power:
• 300W (FPS Series)
• 500W (FPH Series)
‍
Ingress Protection:

• IP54 (245 variants)
• IP65 (246 variants)
• IP67 (241/247 variants)

Input Voltage:

• 100–240 VAC, 50/60 Hz
