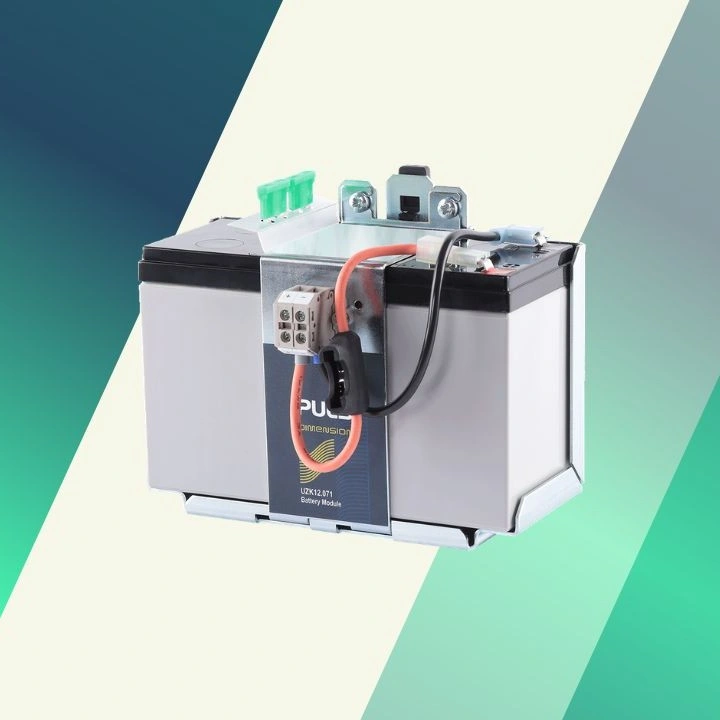

The PULS UZK Battery Module Series provides pre-assembled, ready-to-install DIN rail battery modules for use with PULS UB Series DC-UPS controllers. Each UZK module includes sealed VRLA (Valve Regulated Lead Acid) batteries and an integrated temperature sensor for precise, temperature-compensated charging — ensuring maximum battery service life and reliable backup performance throughout the module's operational lifetime.

Available in 12V and 24V configurations with battery capacities from 7Ah to 26Ah, UZK modules offer a scalable approach to backup time selection. The higher-capacity 26Ah variants (UZK12.261 and UZK24.262) provide extended buffer times for critical applications requiring long-duration protection against power outages.

Main Features:

• Pre-assembled with VRLA batteries — plug-and-play installation
• Integrated temperature sensor for temperature-compensated charging
• 12V and 24V configurations
• Battery capacities: 7Ah, 12Ah, and 26Ah
• Sealed VRLA batteries — maintenance-free operation
• Compatible with PULS UB Series DC-UPS controllers
• DIN rail mounting for standard panel installation
• CE certified

Voltage:

• 12 VDC (UZK12 series)
• 24 VDC (UZK24 series)

‍

Battery Capacity:

• 7Ah (UZK12.071 / UZK24.071)
• 12Ah (UZK24.121 / UZK24.122)
• 26Ah (UZK12.261 / UZK24.262)

‍

Battery Type:

• Sealed VRLA (maintenance-free)

‍

Compatible UPS:

• PULS UB10, UB20, UB40 Series DC-UPS controllers

‍
