PRODUCT  OVERVIEW

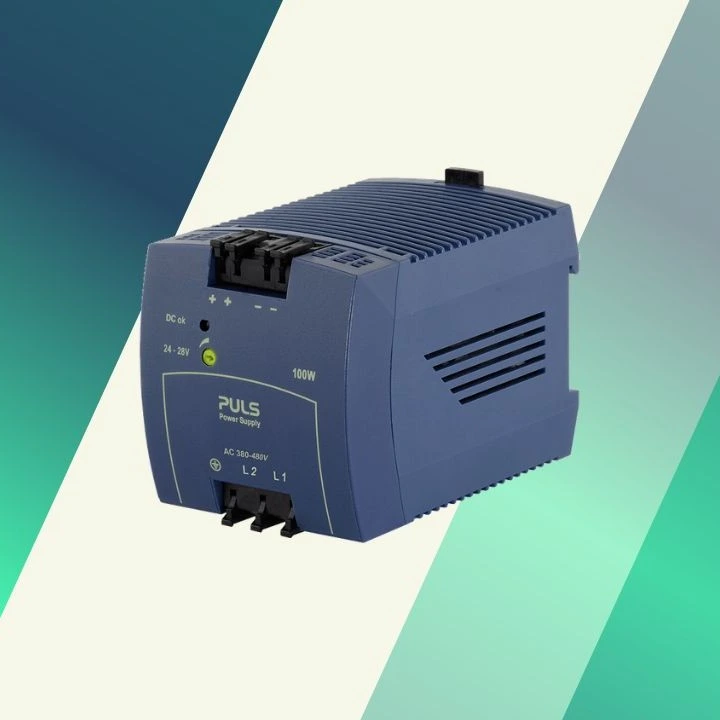

The PULS C Series 3-phase DIN rail power supplies provide reliable and compact power conversion from three-phase AC supplies to stable DC output across 120W and 240W power classes. Three-phase input offers significant advantages over single-phase — including balanced load distribution across all three phases, inherently lower input current per phase, and reduced electromagnetic interference — making C Series units the preferred choice for industrial panels with three-phase power availability.

The C  Series maintains the hallmark PULS compact housing design, allowing tight DIN  rail installations even in space-limited cabinets. Conformal-coated variants  (C1) are available for enhanced protection in environments exposed to  humidity, dust, or chemical agents.

Main Features:

• Three-phase AC input for balanced load and reduced EMC
• 120W and 240W power classes in a compact DIN rail housing
• Output voltages of 12V, 24V, and 48VDC
• Conformal-coated (C1) variants for harsh environment protection
• Short-circuit, overload, and overvoltage protection
• High efficiency for passive cooling
• Wide 3-phase AC input voltage range
• CE certified

Output Voltage:
• 12 VDC (CT5.121)
• 24 VDC
• 48 VDC (CT10.481)

Output Current / Power:
• CT5: 5–10A / 120W
• CT10: 10A / 240W

Input Voltage:
• 3 × 320–575 VAC, 47–63 Hz

Operating Temperature:
• -25°C  to +70°C
